Ubiquiti UniFi Access Point WiFi 6 Mesh (U6-Mesh) Dual-Band Outdoor/Indoor Access Point
Part Number : U6-Mesh
Available on Request
- High-Efficiency
- WiFi 6 Technology
- Speeds up to 5.3 Gbps
- IPX5 Weather-Resistant Housing
- For indoor or outdoor deployment
- Compact, Sleek Form Factor
- Powered by PoE
- Unified Network Management
Free shipping and returns available on all orders!
Couldn't load pickup availability
Features
Elevate your wireless connectivity with the Ubiquiti UniFi U6‑Mesh Access Point. It is a high‑performance WiFi 6 access point. It delivers long‑range, high‑density wireless coverage indoors and outdoors. It uses advanced WiFi 6 technology. Aggregate throughput reaches up to 5.3 Gbps. That is 4.8 Gbps on the 5 GHz band (4x4 MU‑MIMO and OFDMA) and 573.5 Mbps on the 2.4 GHz band (2x2 MIMO). This bandwidth ensures low‑latency performance for data‑heavy applications, remote work, 4K streaming, and dense IoT environments.

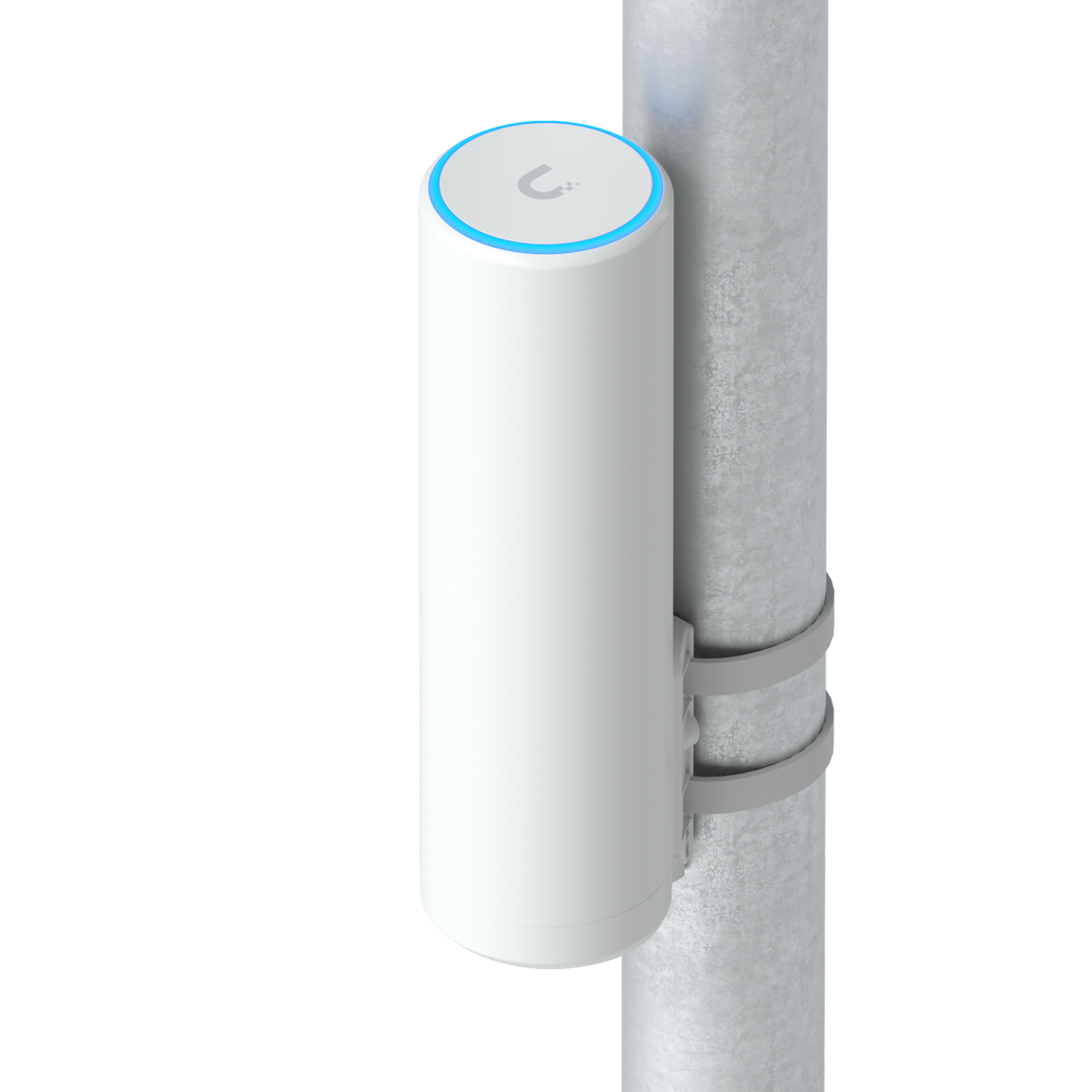

It has a compact, cylindrical design. It breaks away from traditional saucer‑style access points. Its sleek form allows tabletop placement. It also mounts on walls, poles, or ceilings with the included hardware. It has an IPX5‑rated weather‑resistant casing. It withstands rain, extreme temperatures, and outdoor exposure. Ideal for outdoor patios, pool decks, parking structures, and open‑plan offices.
Deploying and scaling is effortless with standard 802.3af PoE support. Power and high‑speed data travel through a single Ethernet cable. No dedicated AC outlets are needed at installation sites. It integrates into the UniFi ecosystem. It is managed via the UniFi Network Controller. You get complete control over topology, traffic analytics, guest access, and security policies across multiple sites. No licensing costs.
Technical specs
| Specifications | Details |
| WiFi Standard
| WiFi 6
|
| Spatial Streams
| 6
|
| Coverage Area
| 140 m² (1,500 ft²)
|
| Max. Client Count
| 250+
|
| Uplink
| GbE
|
| Weatherproofing
| IPX5
|
| Power Method
| PoE
|
| MIMO
| 5 GHz & 2.4 GHz |
| Max. Data Rate
| 4.8 Gbps (BW160) & 573.5 Mbps (BW40 |
| Max. Power Consumption
| 13W
|
| Networking Interface
| (1) GbE RJ45 port
|
| Management
| Ethernet
|
| Enclosure Material
| Polycarbonate, aluminum
|
| NDAA Compliant
| ✓
|
| Certifications
| CE, FCC, IC, SRRC, Anatel: 02111-22-08356
|
| Application Requirements
| Version 6.0.45 and later
|
| Mounting
| Wall, Pole (Mounts Included) |
Support
- Live Chat: Connect with a support expert instantly.
- Call Us: Speak to a certified technician for real-time solutions.
- Email Support: Get detailed, personalized assistance straight to your inbox.
What is the main difference between the U6-Mesh and standard ceiling-mount access points?
The U6-Mesh features a sleek, desktop-friendly cylindrical form factor and an IPX5 weather-resistant rating. Unlike traditional ceiling-mount units, it can sit on a desk, mount on a pole or wall, and tolerate direct outdoor exposure.
Is the UniFi U6-Mesh fully waterproof for outdoor deployment?
Yes. It carries an IPX5 weather-resistance rating, protecting internal components against rain, dust, and environmental exposure when installed vertically outdoors.
Does the U6-Mesh require a wired Ethernet backhaul, or can it operate wirelessly?
It supports both. While connecting via a Gigabit Ethernet cable yields optimal performance, the U6-Mesh can connect wirelessly to another UniFi access point to extend coverage without dedicated network drops.
How is the U6-Mesh powered?
The unit is powered via standard 802.3af Power over Ethernet (PoE). It includes a 48V, 0.32A Gigabit PoE adapter in single-pack options for flexible installation.
Are there subscription fees for managing the U6-Mesh?
No. Ubiquiti’s UniFi Network Controller software is free, with zero subscription fees, user licensing costs, or hidden maintenance charges.
What mounting options are included in the box?
The U6-Mesh includes accessories for wall mounting, pole mounting, and desktop setup. An optional recessed ceiling mount kit is available separately for flush ceiling installations.
How many client devices can the U6-Mesh support simultaneously?
Engineered for high-density environments, the U6-Mesh supports over 300 concurrent device connections while maintaining throughput efficiency via OFDMA and MU-MIMO technology.
Can I configure the U6-Mesh without a full UniFi server infrastructure?
Yes. For basic standalone setups, you can adopt and configure the U6-Mesh directly using the free UniFi Mobile app via Bluetooth. Advanced network controls require a UniFi Cloud Gateway, Cloud Key, or hosted controller.
