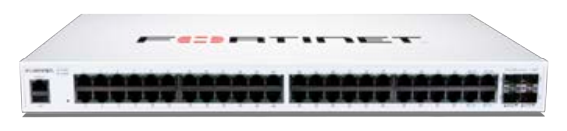

Fortinet FortiSwitch FS-148F-FPOE
Part Number : FS-148F-FPOE
Regular price
Price ex VAT
£1,266.66 ex VAT
Regular price
Sale price
Price ex VAT
£1,266.66 ex VAT
Price inc VAT
£1,519.99 inc VAT
Unit price
per
- Managed Layer 2 PoE+ Ethernet switch
- High switching performance
- All 48 RJ45 ports support PoE/PoE
- FortiLink integration enables
- Compact 1 RU rack-mount form factor
- Supports essential network features
- 176 Gbps capacity and 260 Mpps throughput
-
Only a few items left in stock. Don't miss out.
Free shipping and returns available on all orders!
Couldn't load pickup availability
Features
Fortinet FortiSwitch FS-148F-FPOE
The FortiSwitchTM Secure Access Family delivers outstanding security, performance, and manageability. Secure, simple, and scalable, FortiSwitch is the right choice for threat-conscious businesses of all sizes.
Tightly integrated into the Fortinet Security Fabric via FortiLink, FortiSwitch can be managed directly from the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD-Branch deployments with applications that range from desktop to data center aggregation, enabling businesses to converge their security and network access.
Security Fabric Integration through FortiLink
FortiLink is an innovative proprietary management protocol that allows our FortiGate Next Generation Firewall to seamlessly manage any FortiSwitch. FortiLink enables the FortiSwitch to become a logical extension of the FortiGate, integrating it directly into the Fortinet Security Fabric. This management option reduces complexity and decreases management costs as network security and access layer functions are enabled and managed through a single console. FortiLink integration enables centralized policy management, including role-based access and control, making it easy to implement and manage. This control and manageability make FortiSwitch ideal for SD-Branch deployments.
More Information
Part No - FS-148F-FPOE
Country of Manufacture - China
Brand - Fortinet
Technical specs
| Spesifications | Details |
| Product Name / Model
| Fortinet FortiSwitch FS-148F-FPOE
|
| Switch Type
| Managed Layer 2 Ethernet Switch
|
| Ports
| 48× Gigabit RJ45 (PoE+) + 4× 10 GbE SFP+
|
| PoE Standard
| IEEE 802.3af / 802.3at
|
| Total PoE Power Budget
| ~740 W
|
| Switching Capacity
| 176 Gbps (duplex)
|
| Throughput
| 260 Mpps
|
| VLAN Support
| 4 K VLANs
|
| Link Aggregation
| Supported
|
| ACL Entries
| Supported
|
| Memory
| 512 MB DRAM, 64 MB Flash
|
| Power Supply
| Internal AC 100-240 V, 50/60 Hz
|
| Console Port
| 1× RJ45
|
| Certifications
| FCC, CE, RoHS2, UL, CB, VCCI, etc.
|
| Operating Temp.
| 0–45 °C
|
Support
- Live Chat: Connect with a support expert instantly.
- Call Us: Speak to a certified Aruba technician for real-time solutions.
- Email Support: Get detailed, personalized assistance straight to your inbox.
What types of PoE does this switch support?
It supports PoE (802.3af) and PoE+ (802.3at) on all 48 RJ45 ports, delivering power and data over a single cable to devices like APs and cameras, with a maximum total budget around 740W.
Can this switch be centrally managed?
Yes — through FortiLink, it integrates with Fortinet FortiGate firewalls, allowing centralized configuration, security policy enforcement, and visibility from a single console. It also supports standalone management via CLI/GUI/API.
What’s the throughput and performance capacity?
The switch delivers a switching capacity of ~176 Gbps and forwards up to ~260 million packets per second for high-speed access layer performance.
Is stacking supported?
Yes, the switch can be stacked (with FortiGate assistance) in larger deployments — up to hundreds of switches per controller depending on FortiGate model.
What network features are supported?
Supports VLAN segmentation, link aggregation (LAG), spanning tree protocols, ACLs, QoS, and role-based access control, typical of enterprise switches.
What form factor is this product?
It comes in a 1 RU rack-mount chassis, ideal for standard rack installations in enterprise closets or data centers.
Does this switch have a fan?
Yes. Due to the high power output of the 740W PoE budget, this model uses internal fans for cooling. It is designed for data closets or server rooms rather than quiet office desk environments.
What kind of warranty comes with the FS-148F-FPOE?
Fortinet typically offers a FortiCare subscription service for their hardware. While it comes with a limited lifetime warranty in many regions, most enterprise users opt for a FortiCare Contract (8x5 or 24x7) to receive ongoing firmware updates and technical support.
