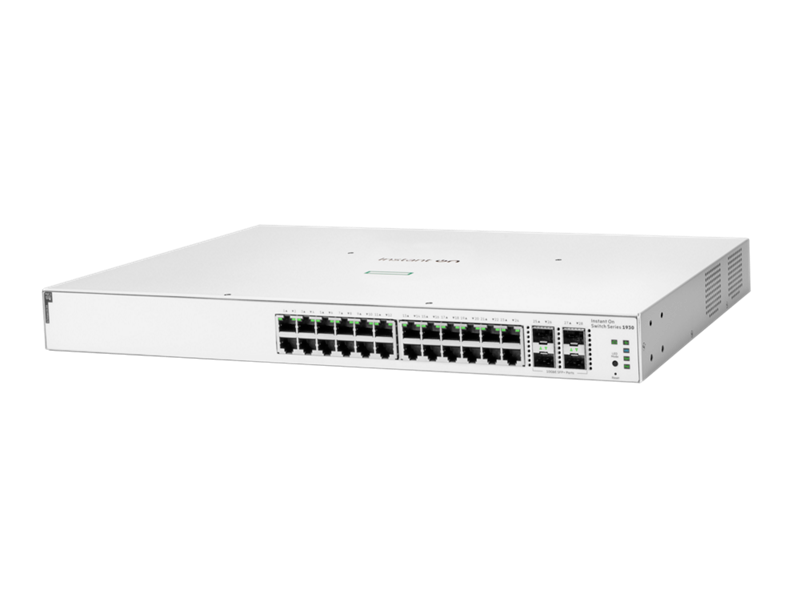

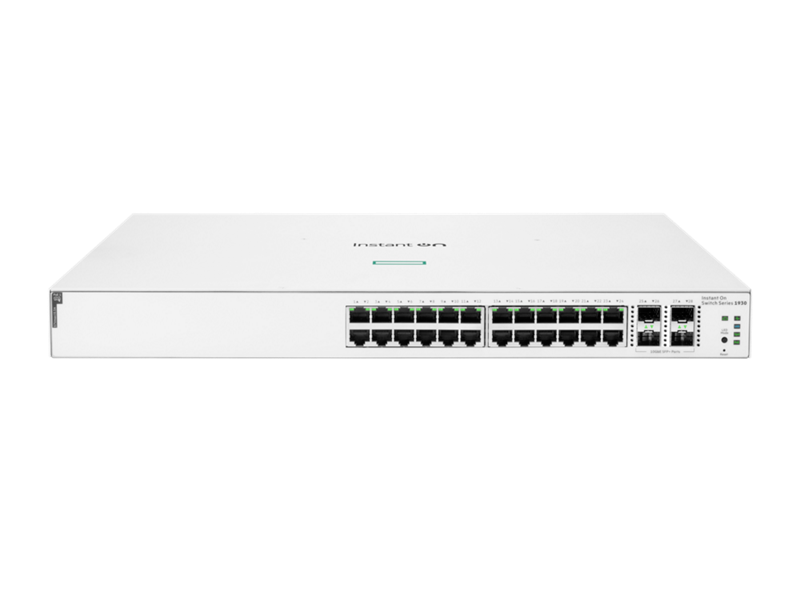

Aruba JL684B Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch
Part Number : JL684B
Regular price
Price ex VAT
£321.00
Price inc VAT
£385.20 inc VAT
Regular price
Sale price
Price ex VAT
£321.00 ex VAT
Price inc VAT
£385.20 inc VAT
Unit price
per
- Brand New Device
- Best Aruba Brand Supplier
- High-Speed Fiber Uplinks
- 4 dedicated SFP+ 1/10GbE ports
- Robust PoE Capacity
- 370W PoE budget
- Advanced Layer 2+ Features
- Enterprise-Grade Performance
- Limited Lifetime Warranty
- 24x7 phone support (90 days)
Only a few items left in stock. Don't miss out.
Free shipping and returns available on all orders!
Couldn't load pickup availability
Features
The Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch (JL684B) is an enterprise-grade, smart-managed solution specifically designed for small and growing businesses. It provides high-performance connectivity and high power delivery for bandwidth-intensive devices like WiFi 6 access points, surveillance cameras, and VoIP phones.
Technical specs
Feature | Details |
Port Configuration | 24 RJ-45 10/100/1000 ports + 4 SFP/SFP+ 1/10GbE slots |
Power Delivery | 370W total budget; IEEE 802.3at (PoE+) |
Processing Power | ARM Cortex-A9 @ 800 MHz; 512 MB SDRAM |
Dimensions | 44.25 x 26.47 x 4.39 cm (1U height) |
Reliability | Limited Lifetime Warranty; 24x7 phone support (90 days) |
Support
- Live Chat: Connect with a support expert instantly.
- Call Us: Speak to a certified technician for real-time solutions.
- Email Support: Get detailed, personalized assistance straight to your inbox.
Do I need a subscription to use the cloud management features?
No. All management features, including the Aruba Instant On mobile app and cloud-based web portal, are included in the purchase price with zero licensing or subscription fees.
Can the JL684B power Wi-Fi 6 access points and IP cameras simultaneously?
Yes. Its 24 Gigabit PoE ports share a total power budget of 370W, supporting compatible access points, IP cameras and VoIP phones.
Does the Aruba JL684B support link aggregation?
Yes. It supports link aggregation, allowing multiple network connections to be combined for increased bandwidth and redundancy.
Can I connect the JL684B to a fibre network?
Yes. Its four SFP+ ports support compatible 1GbE and 10GbE fibre transceivers for high-speed network uplinks.
Is the JL684B suitable for a small business server room?
Yes. It offers 24 Gigabit PoE ports, four 10GbE-capable uplinks and a 370W PoE budget, making it suitable for many small business networks.
How much power does the JL684B consume?
Its maximum rated power consumption is approximately 440.4W, including PoE output. Actual consumption varies with connected devices and network load.
Can I manage this switch without using the cloud?
Yes. You can choose to manage the switch through a local web GUI if you prefer on-premise control without an internet connection.
How do I perform a factory reset?
Locate the small reset button hole on the bottom right of the switch front. Insert a paperclip and hold the button until all port LEDs turn green.
How many devices can this switch power?
The switch has a 370W total PoE budget. It supports Class 4 PoE (PoE+), delivering up to 30W per port. You can power a mix of devices (e.g., WiFi 6 APs, PTZ cameras) as long as the total draw does not exceed 370W.
Are the SFP+ ports only for 10Gbps speeds?
The 4 dedicated SFP+ slots are dual-speed, supporting both 1GbE (SFP) and 10GbE (SFP+) fiber transceivers for flexible uplink options.
What is the warranty coverage?
It comes with a Limited Lifetime Warranty. This includes 24/7 phone support for the first 90 days and chat support for the entire duration of the warranty.
Can I mount this switch in a rack?
Yes. This is a 1U rack-mountable switch. The standard mounting hardware is typically included in the box for rack, wall, or under-table mounting.
What SFP transceivers are compatible?
Aruba recommends using Aruba-branded SFP/SFP+ transceivers. While some third-party modules may work, using non-approved transceivers is at your own risk and could potentially void support.
