UniFi Cloud Gateway Max (UCG-Max) – 2.5 GbE Desktop Router & Local Storage Hub
numéro de pièce : UCG-Max
Available on Request
- High-Speed Multi-Gigabit Routing

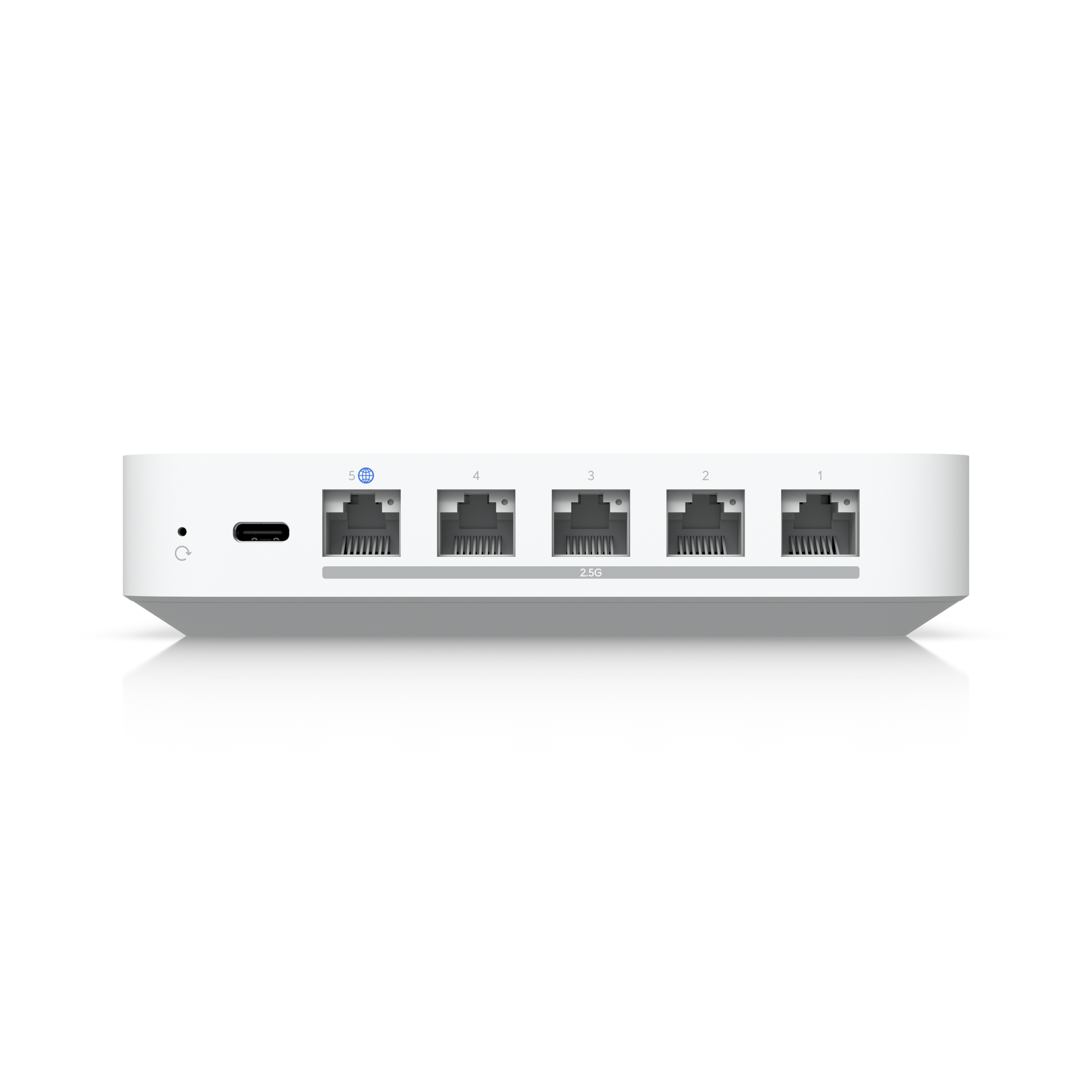

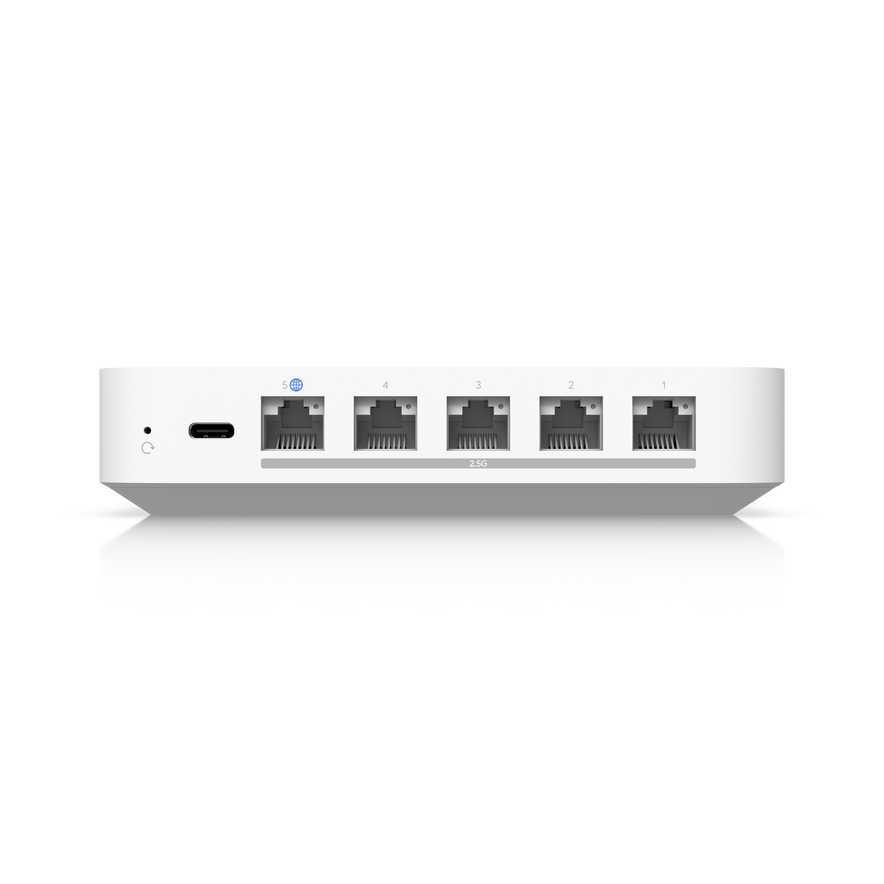

- 5 x 2.5 GbE RJ45 ports
- Selectable NVMe NVR Storage
- Host UniFi Protect camera footage
- Full UniFi Application Suite
- No external Cloud Key required.
- Uncompromised 2.3 Gbps Security
- Real-time IPS/IDS threat detection
- Silent Desktop Form Factor
Livraison et retours gratuits disponibles sur toutes les commandes !
Nous expédions toutes les commandes au Royaume-Uni dans un délai de 5 à 10 jours ouvrables.
Impossible de charger la disponibilité du service de retrait
Features

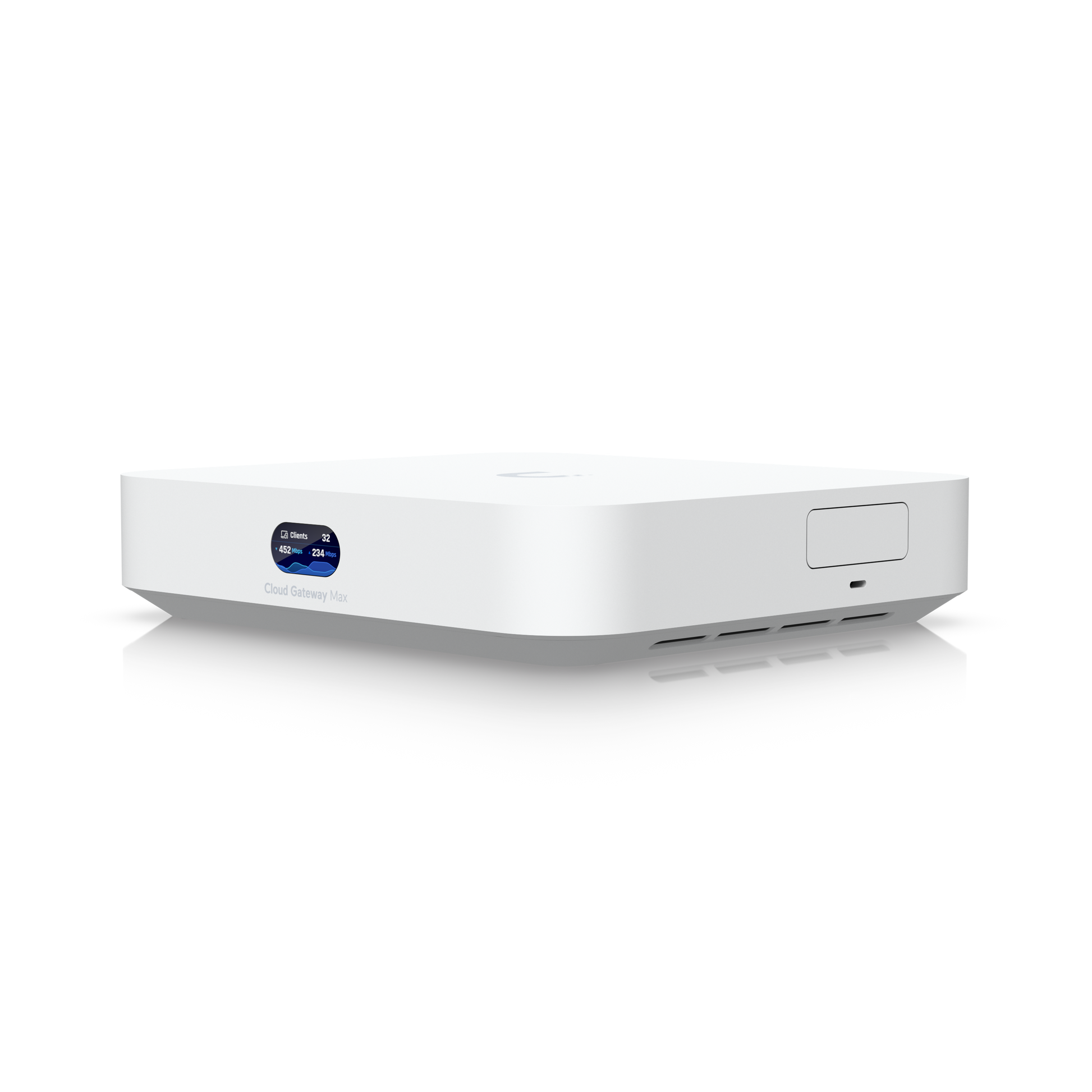

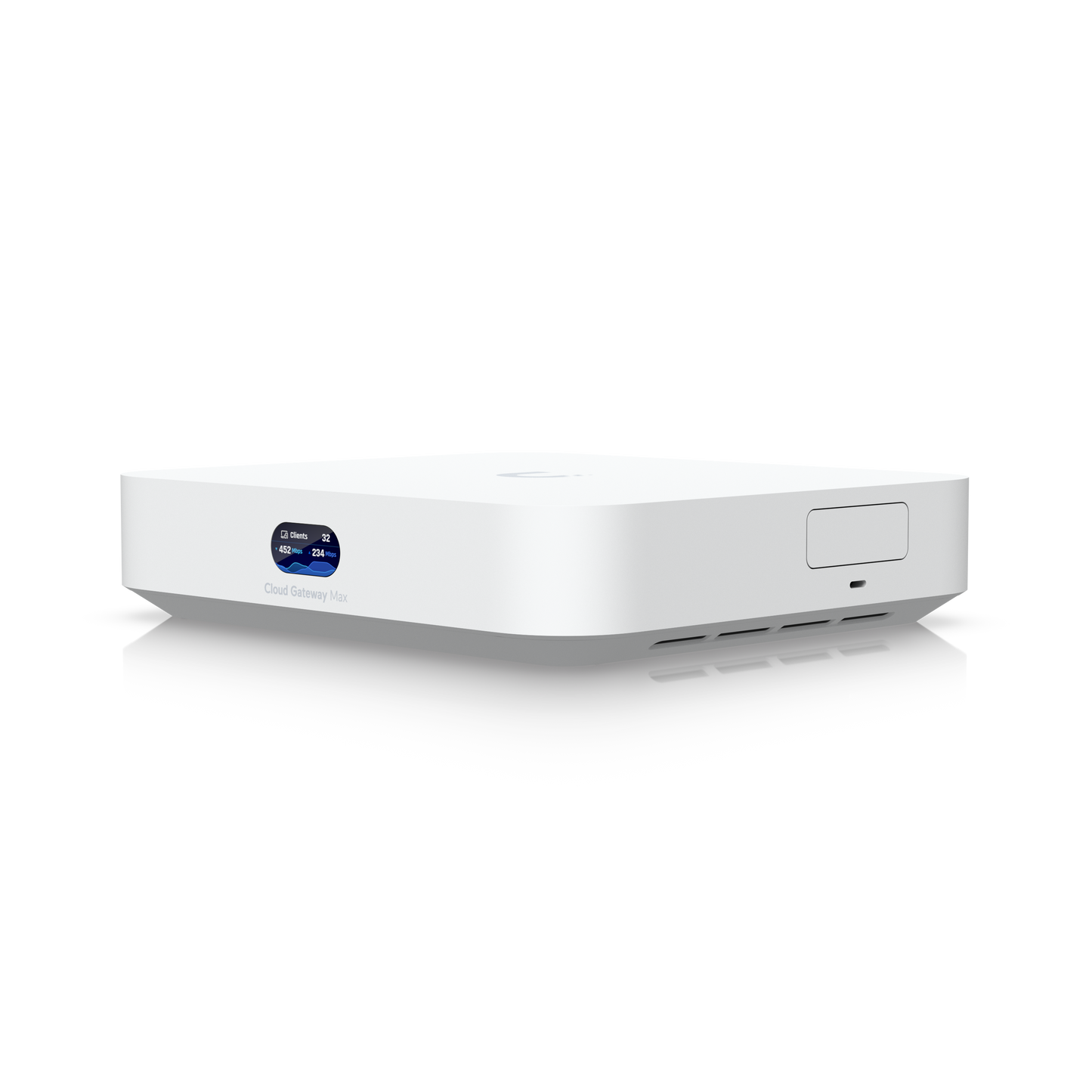

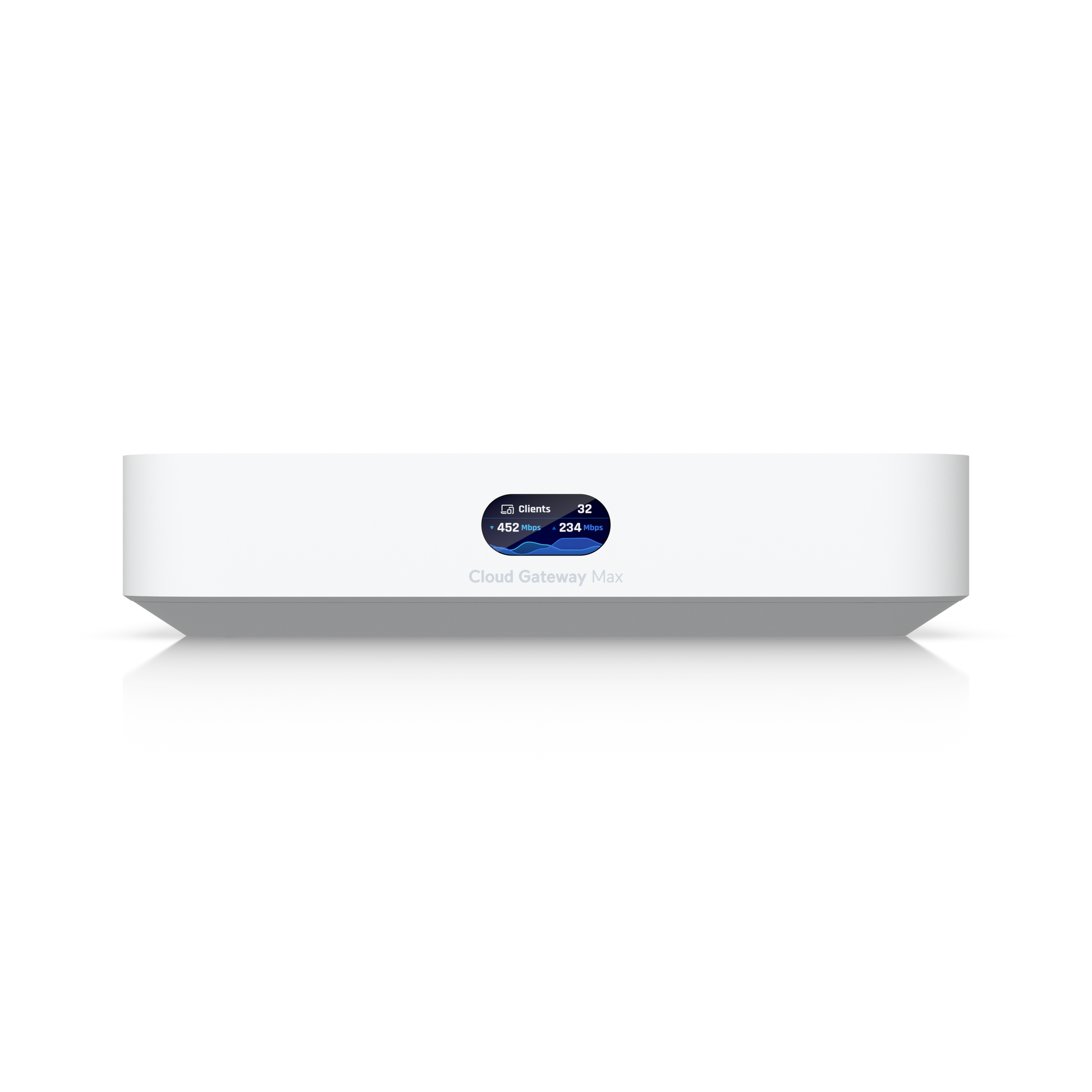

The UniFi Cloud Gateway Max (UCG-Max) packs enterprise power into a compact, silent desktop box. It runs the full UniFi OS suite—Network, Protect, Access, Talk, and Connect—without extra hardware. Five 2.5 GbE ports (1 WAN, 4 LAN) support multi-gig internet and flexible WAN failover.Built-in IPS/IDS keeps security routing at up to 2.3 Gbps. Add up to 2 TB NVMe SSD for local Protect video storage—no monthly fees. The fanless design is quiet, with a small status screen for quick checks. Supports 30+ UniFi devices and 300+ clients. Includes VPN (WireGuard, OpenVPN, IPsec) and Site Magic SD-WAN. Manage everything via the free UniFi app or web portal. Perfect for smart homes, offices, and multi-site businesses.
Technical specs
| Specifications | Details |
| Managed UniFi Devices
| 30+
|
| Managed Cameras
| (15) HD (8) 2K (5) 4K
|
| Managed Access Hubs
| 50
|
| Simultaneous Users Connected
| 300+
|
| Max. WAN Port Count
| 4
|
Default WAN Ports | (1) 2.5 GbE RJ45
|
IDS/IPS Throughput | 2.3 Gbps
|
| Form Factor
| Compact desktop
|
| IDS/IPS Signatures
| 55,000+ with CyberSecure
|
| NVR Storage
| Selectable NVMe SSD up to 2 TB |
| Max. Power Consumption
| 16.1W
|
| Power Method
| USB type C (5V DC/5A)
|
| Power Supply
| USB type C (5V DC/5A)
|

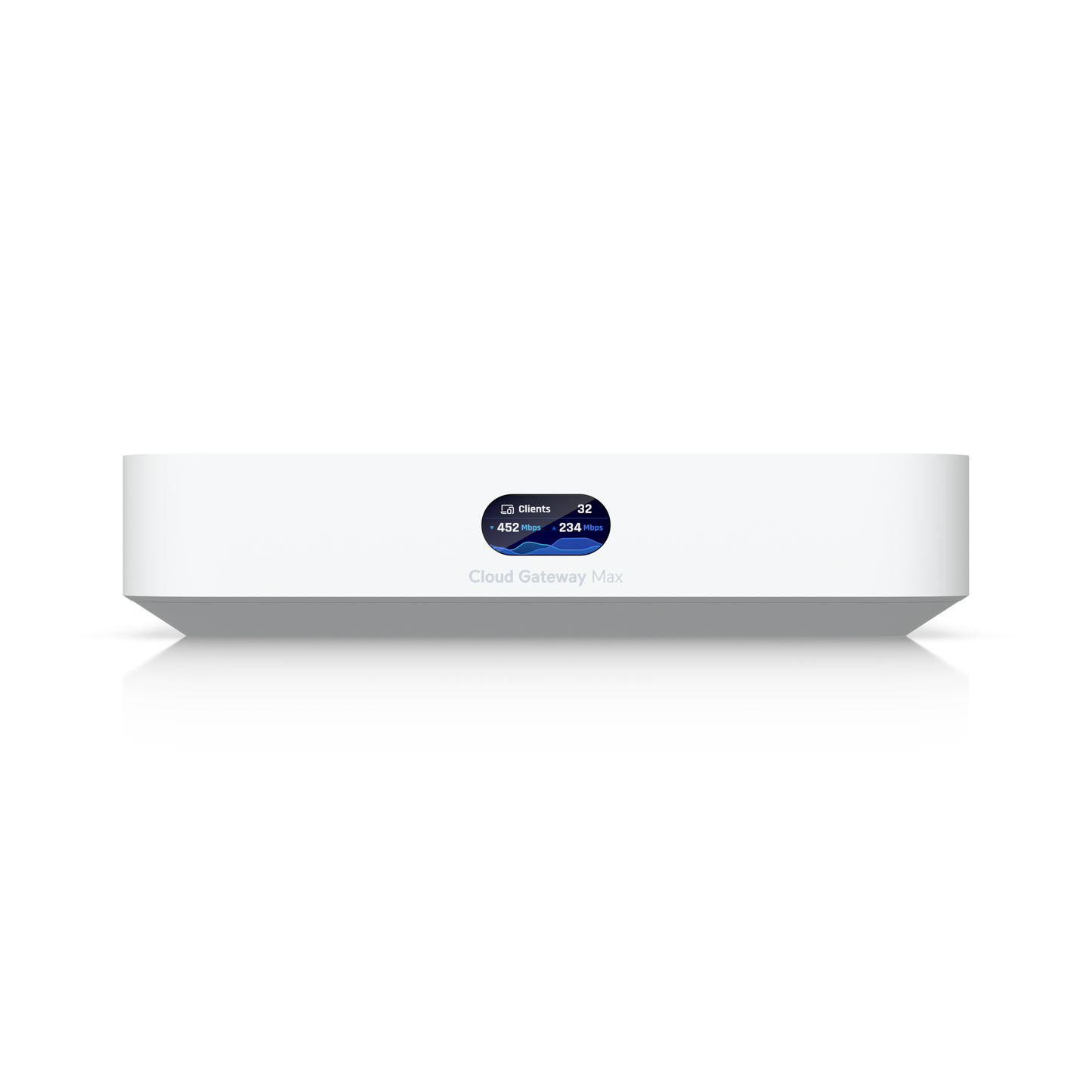

| LCM Display
| 0.96" status display
|
| Button
| (1) Factory reset
|
| Application Requirements
| UniFi iOS™ and Android™: Version 10.17.2 and later
|
Support
- Live Chat: Connect with a support expert instantly.
- Call Us: Speak to a certified Aruba technician for real-time solutions.
- Email Support: Get detailed, personalized assistance straight to your inbox.
What makes the UniFi Cloud Gateway Max (UCG-Max) different from the UCG-Ultra?
The UCG-Max delivers higher overall hardware capabilities, including full 2.5 GbE networking (5 total ports), up to 2.3 Gbps IDS/IPS security throughput, and support for optional M.2 NVMe SSD storage to host the entire UniFi Application Suite (Network, Protect, Access, Talk, and Connect).
Can the UCG-Max record and store UniFi Protect security camera video?
Yes. The UCG-Max features a dedicated slot for an M.2 NVMe SSD (up to 2 TB). When fitted with an SSD, it operates as a full-featured UniFi Protect NVR for local 24/7 video recording without monthly cloud subscription fees.
Does the UCG-Max come with built-in storage, or do I need to supply an SSD?
It is sold in both configurations: models with pre-installed NVMe storage (e.g., 512 GB, 1 TB, or 2 TB) and a "No Storage" model. If you purchase the base model without an SSD, you can add a compatible M.2 NVMe drive later using the optional expansion tray to enable camera recording.

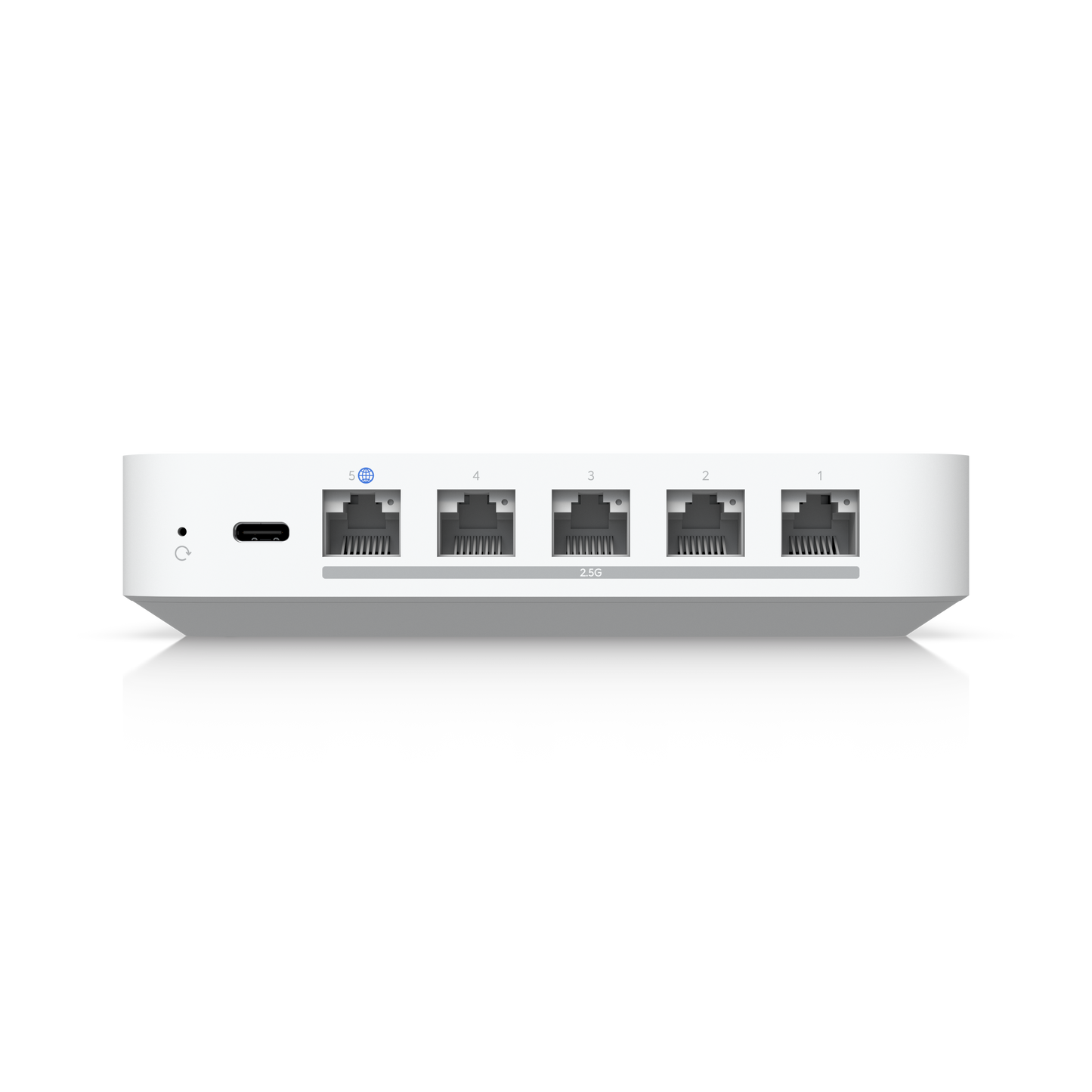

Can all 5 Ethernet ports on the UCG-Max run at 2.5 Gbps?
Yes. All 5 RJ45 Ethernet ports on the UCG-Max support multi-gigabit 2.5 GbE speeds. This allows you to connect 2.5 GbE internet WAN connections as well as high-speed LAN hardware, multi-gig switches, and Wi-Fi 6E/7 access points without bandwidth bottlenecks.
What is the security routing performance when threat management (IDS/IPS) is active?
The UCG-Max maintains up to 2.3 Gbps of security throughput with real-time Intrusion Detection and Intrusion Prevention Systems (IDS/IPS), deep packet inspection, and Layer 7 application control fully operational.
How many UniFi devices and client devices can the UCG-Max support?
It is engineered to host and manage 30+ UniFi network devices (access points, switches, and door controllers) and comfortably handle over 300 connected client devices across your network.
Does the UCG-Max require any recurring cloud subscriptions or software licenses?
No. There are zero license fees or subscription costs to run UniFi applications, host your Protect camera storage locally, or manage your sites remotely via the free UniFi Site Manager web portal and mobile app.
Does the UCG-Max support dual-WAN failover and Site-to-Site VPNs?
Yes. The UCG-Max supports multi-WAN configuration (load balancing or failover), high-speed WireGuard, OpenVPN, IPsec, and Ubiquiti's Site Magic SD-WAN for single-click encrypted mesh networking between multiple remote sites.
