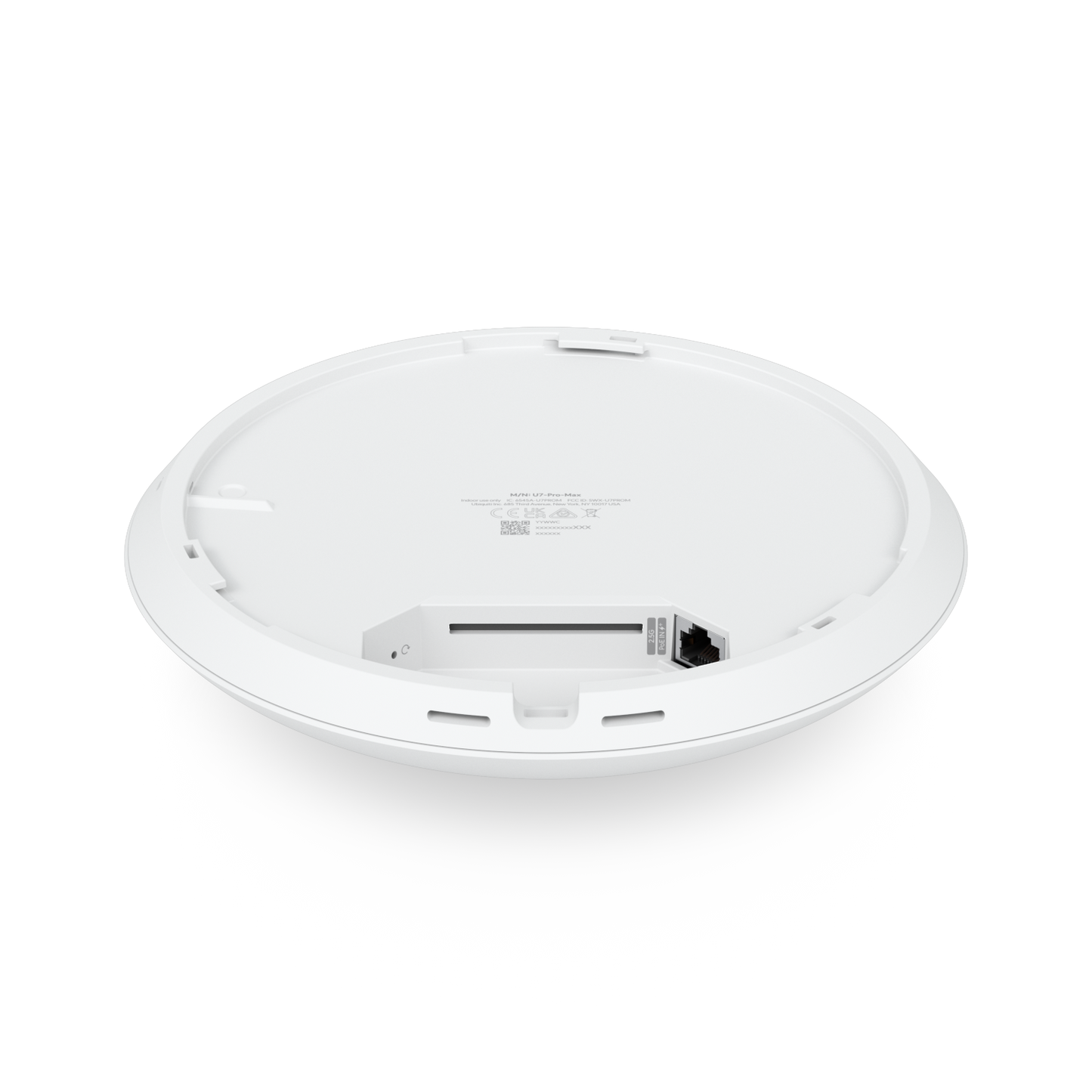

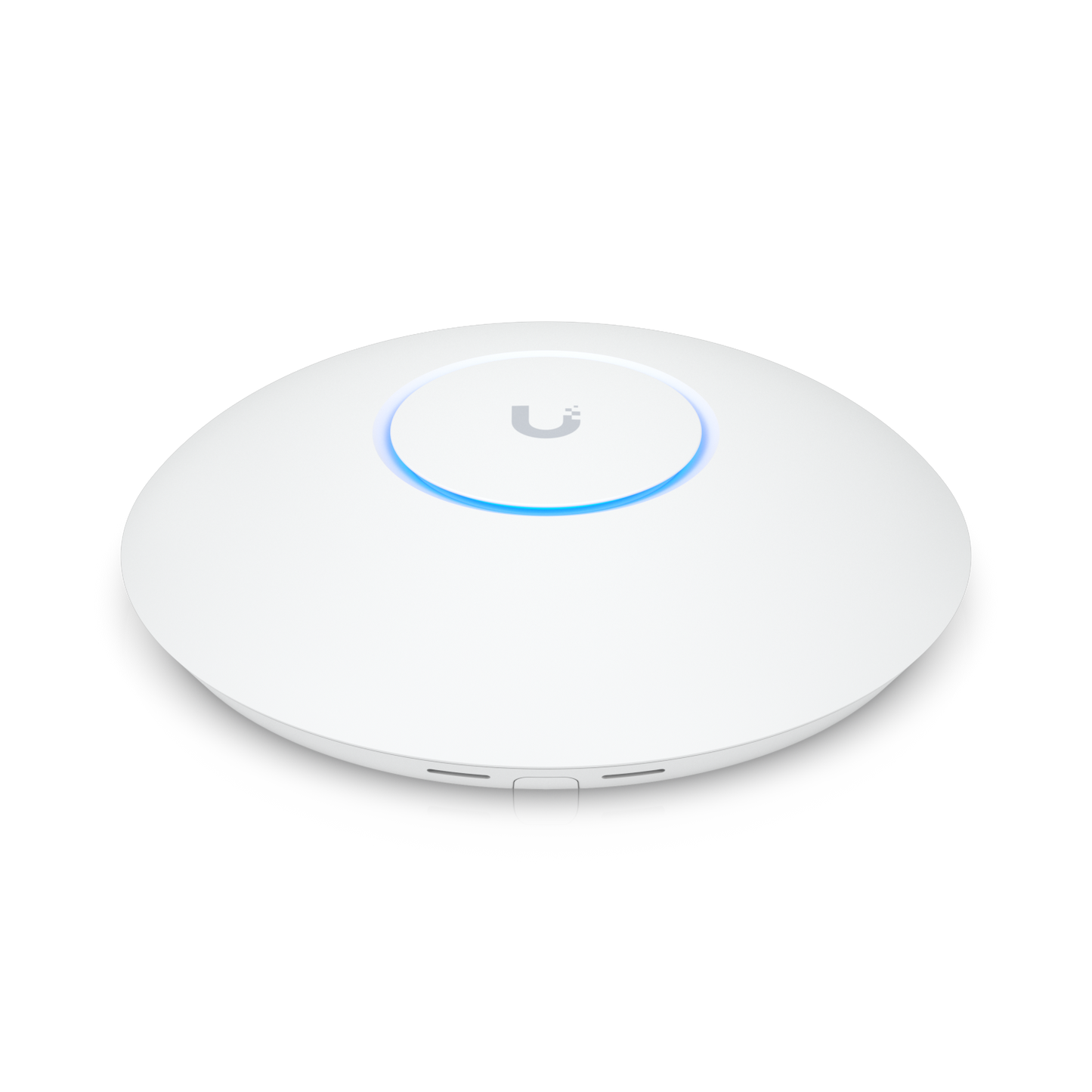

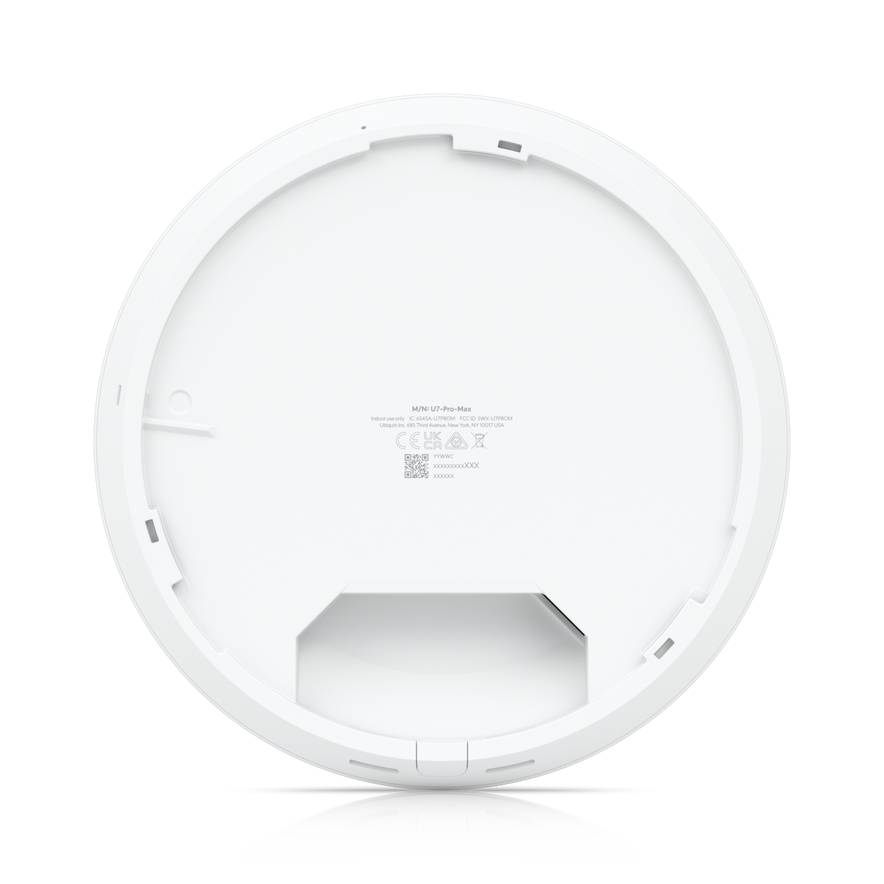

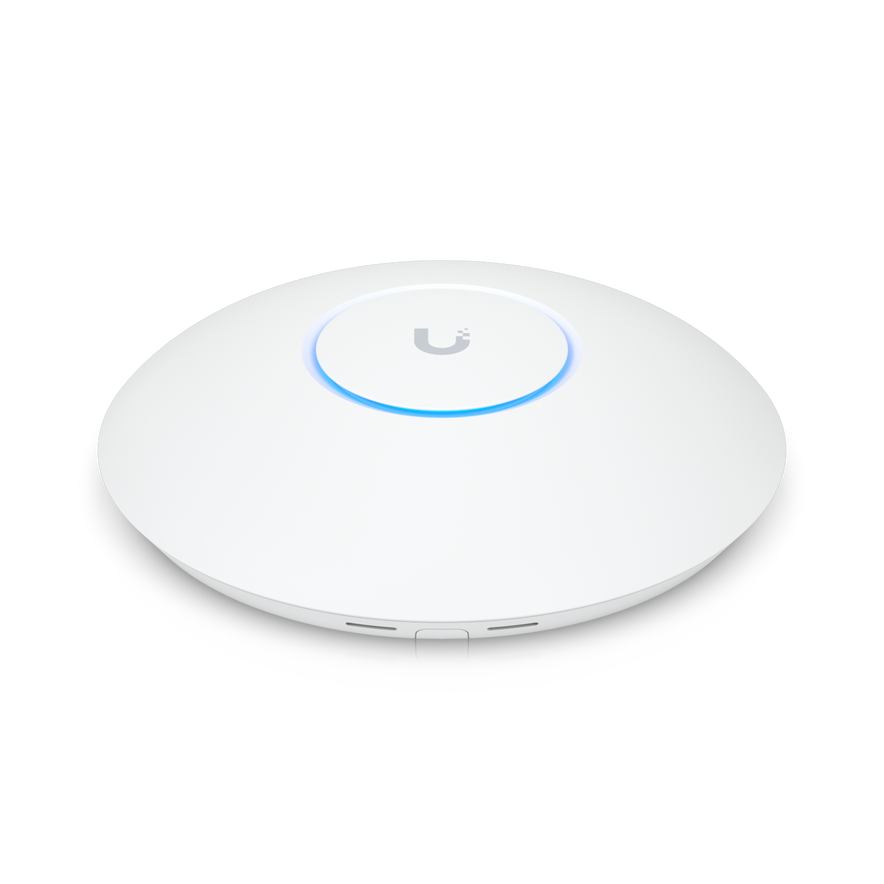

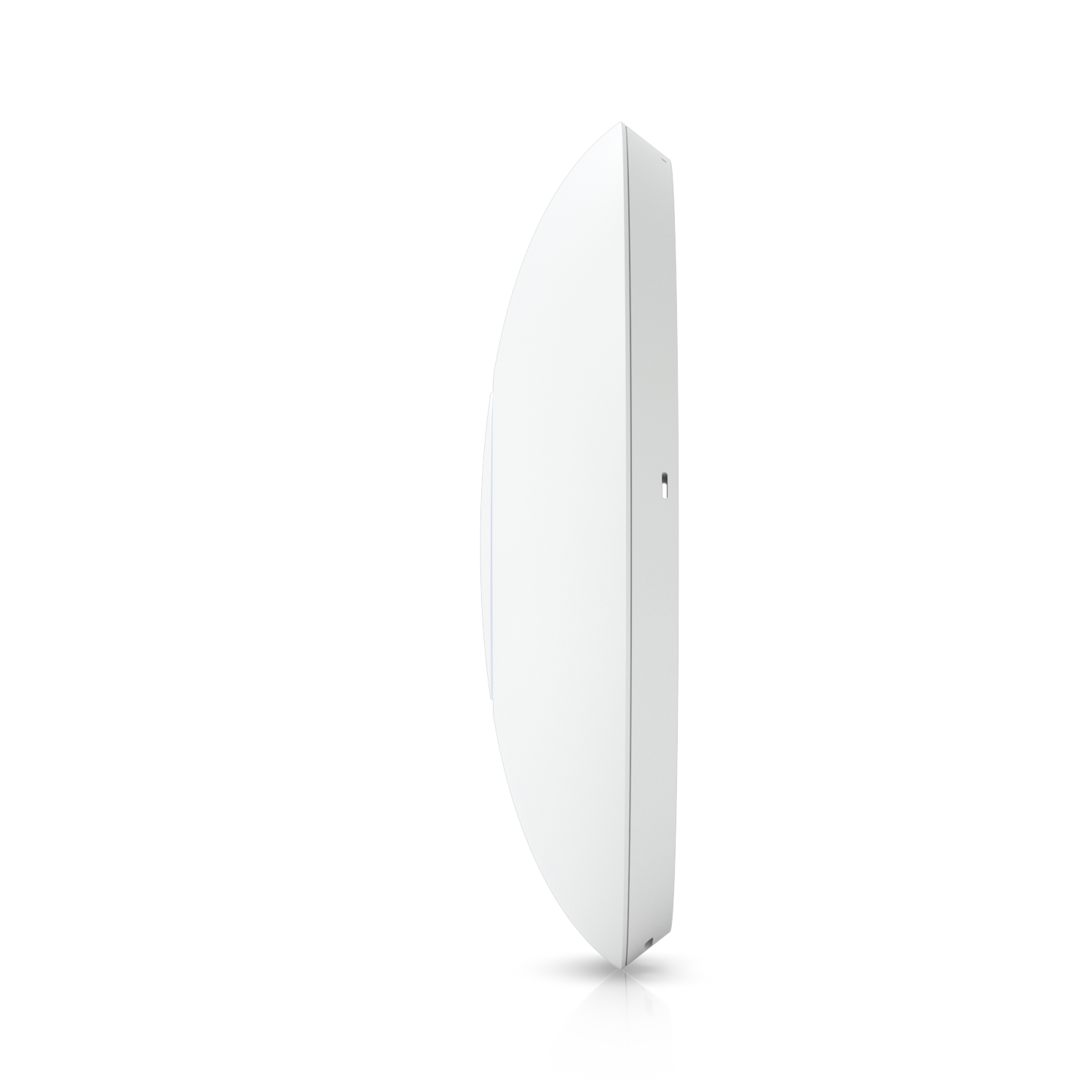

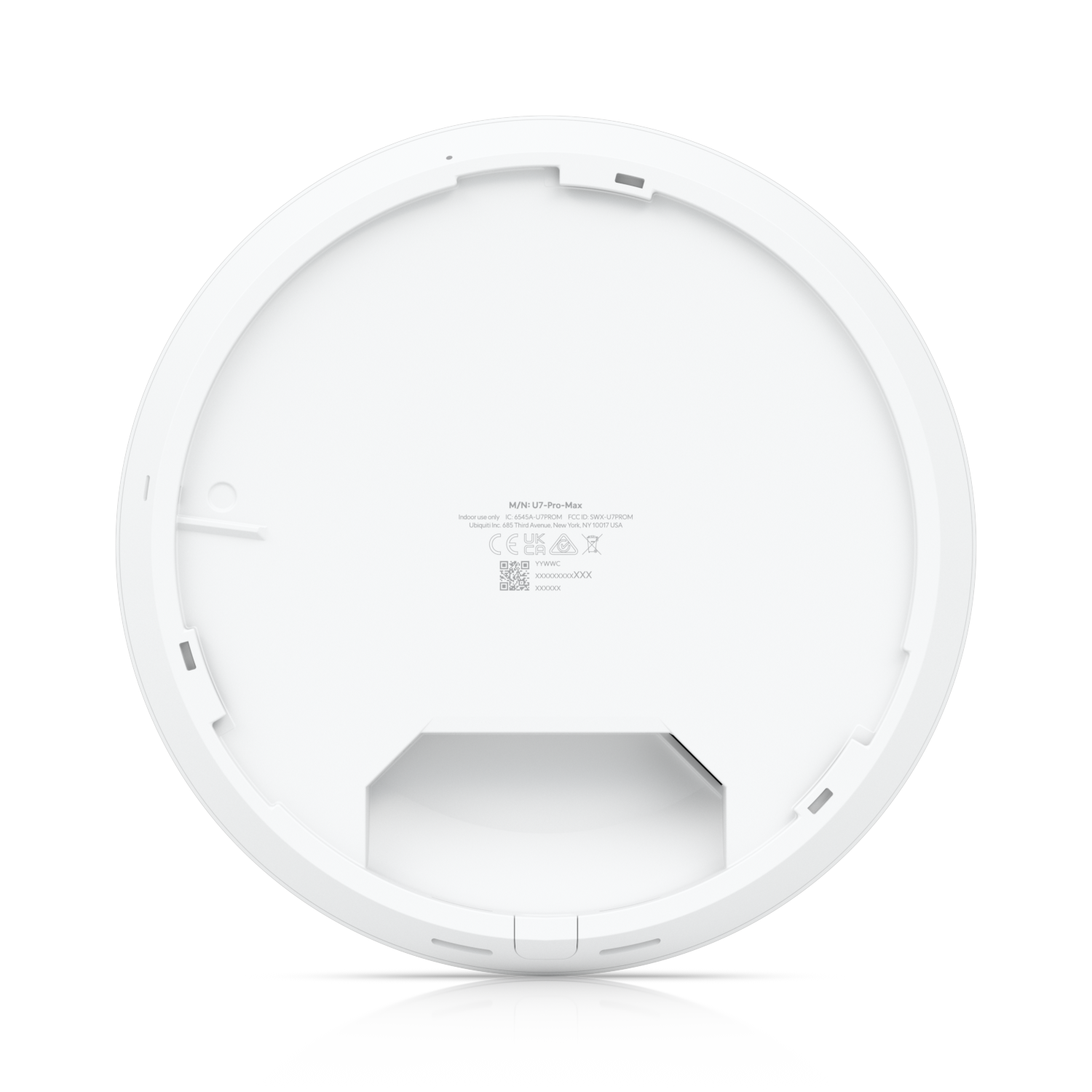

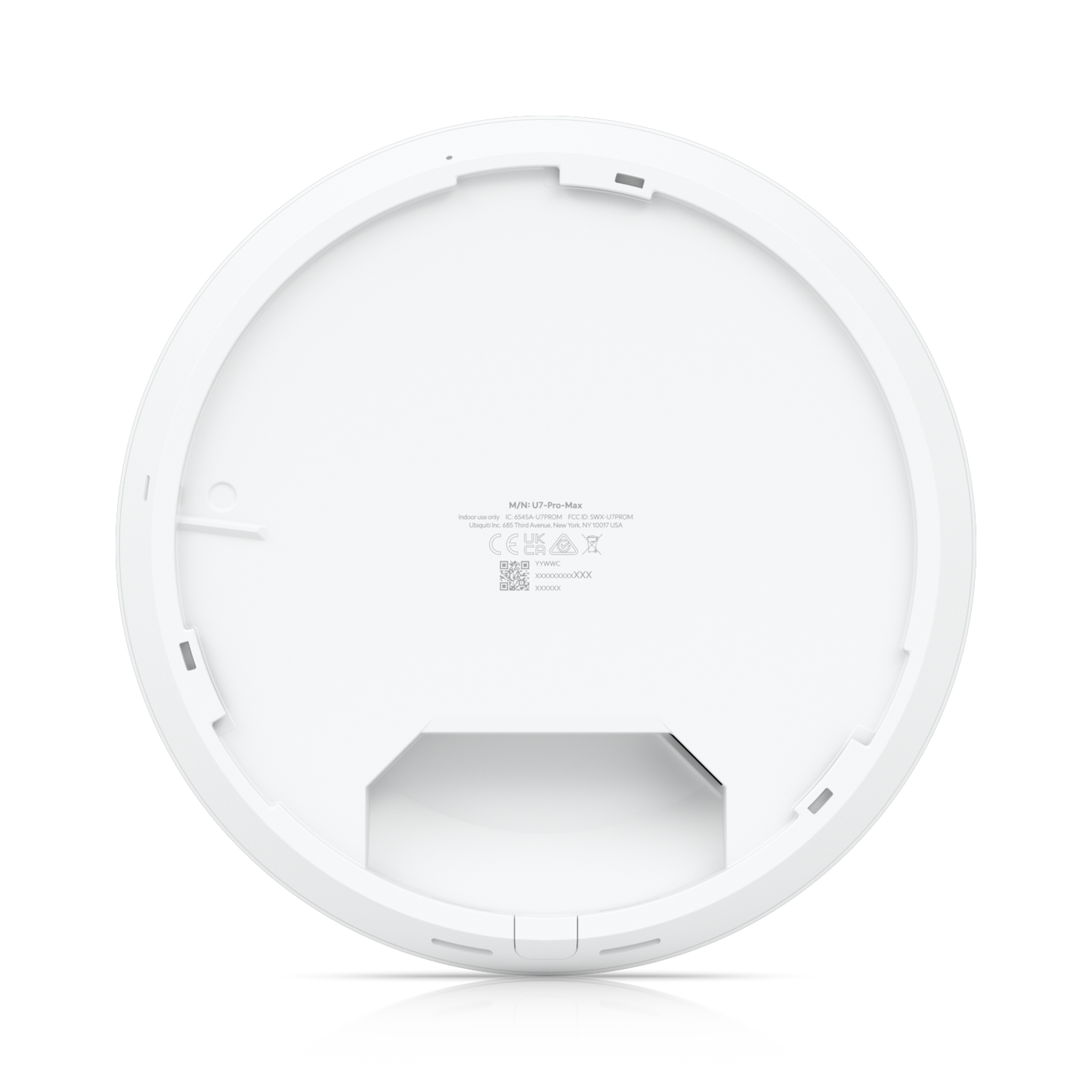

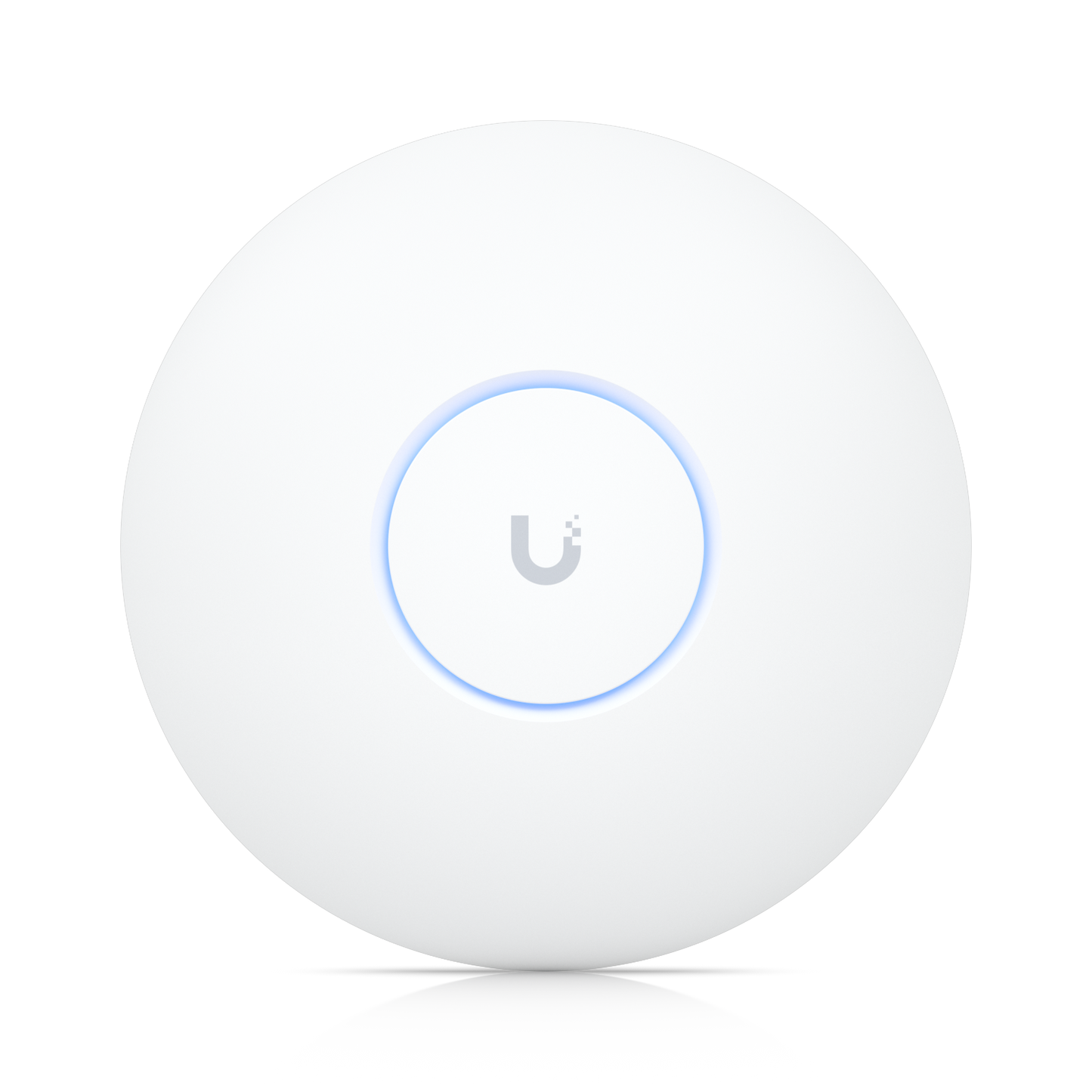

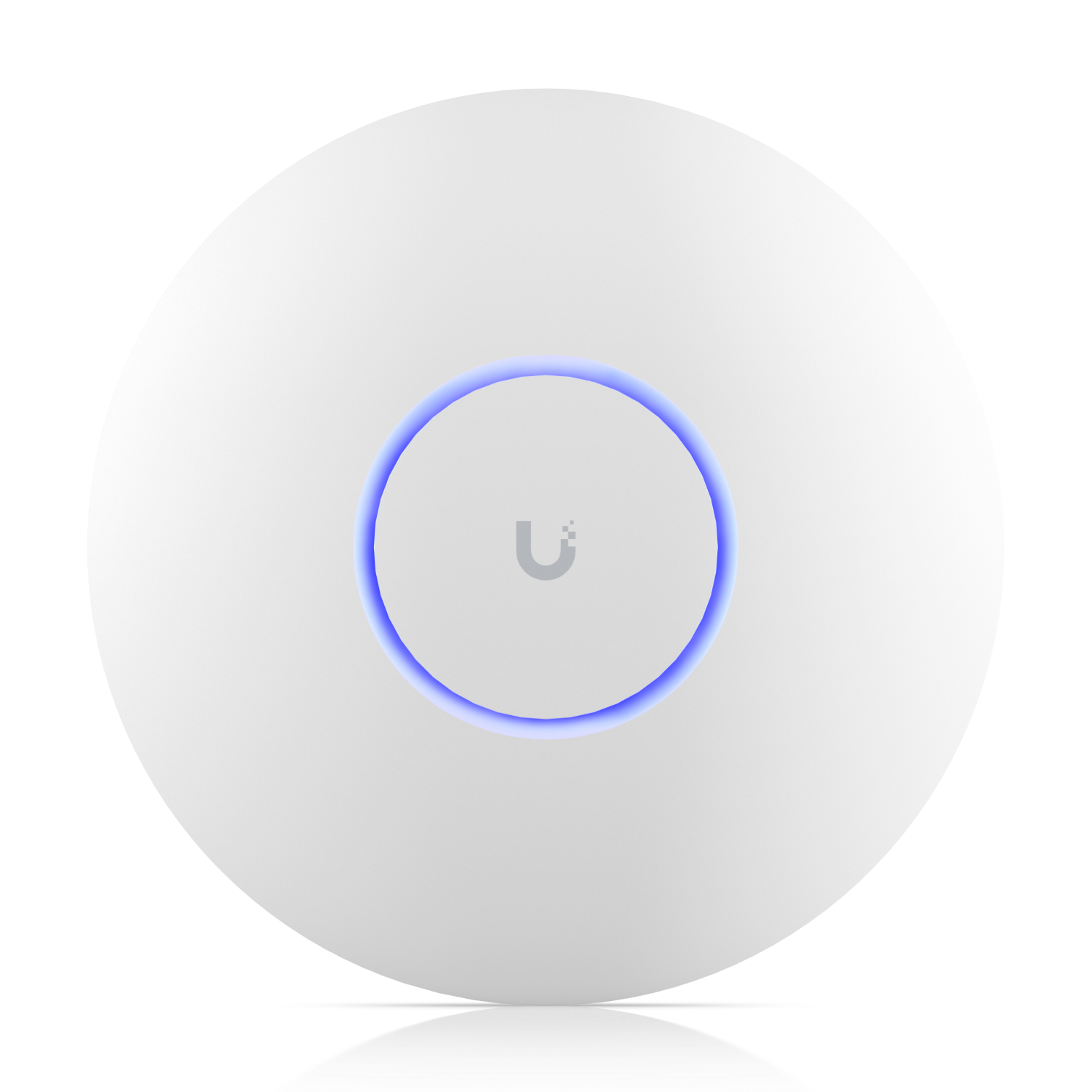

Ubiquiti UniFi U7 Pro Max Tri-Band Wi-Fi 7 Ceiling-Mount 8-Stream Access Point (U7-PRO-MAX)
numéro de pièce : U7-PRO-MAX
Prix habituel
Price ex VAT
£213.00
Price inc VAT
£255.60 inc VAT
Prix habituel
Prix soldé
Price ex VAT
£213.00 ex VAT
Price inc VAT
£255.60 inc VAT
Prix unitaire
par
- Wireless Meshing
- Advanced Radio Management
- Passpoint (Hotspot 2.0)
- Max. Client Count 500+
- Power Method PoE+
- Mounting Ceiling, Wall
- Spatial Streams 8
Only a few items left in stock. Don't miss out.
Livraison et retours gratuits disponibles sur toutes les commandes !
Nous expédions toutes les commandes au Royaume-Uni dans un délai de 5 à 10 jours ouvrables.
Impossible de charger la disponibilité du service de retrait
Features
The Ubiquiti UniFi U7 Pro Max is a top‑tier enterprise access point. It brings fast, interference‑free Wi‑Fi to large, demanding networks. This ceiling‑mounted device uses the latest 802.11be standard. It broadcasts across three bands at once—2.4 GHz, 5 GHz, and 6 GHz. Total aggregate throughput reaches up to 15 Gbps.
A key feature is its eight spatial streams. The 5 GHz band uses a 4x4 MU‑MIMO setup. The 2.4 GHz and 6 GHz bands each use a 2x2 configuration. A dedicated spectral scanning engine constantly monitors the airwaves. It reduces local interference and adjusts channels automatically. This keeps performance high in crowded spaces like offices, campuses, or retail stores.
One unit covers up to 1,750 square feet. It also supports over 500 active devices at the same time. A 2.5 GbE uplink port handles heavy traffic without slowing down. Power comes via standard PoE+ for simple installation. The UniFi platform gives full control over bandwidth limits, guest isolation, custom portals, and WPA3 security.
Technical specs
U7 Pro Max Technical Specification -
| Specification
| Detail
|
| Dimensions
| ⌀206 x 46 mm (⌀8.1 x 1.8")
|
| Weight
| 680 g (1.5 lb)
|
| WiFi Standard
| WiFi 7 (802.11be)
|
| Spatial Streams
| 8 |
| Coverage Area
| 160 m² (1,750 ft²)
|
| Max. Client Count
| 500+ |
| Uplink Interface
| 2.5 GbE RJ45 port
|
| Power Method
| PoE+
|
| Max. Power Consumption
| 25W
|
| Management Interface
| Ethernet
|
| Mesh Support
| Wireless Meshing
|
| Mounting
| Ceiling, Wall
|
| Mount Material
| Stainless steel
|
Support
- Live Chat: Connect with a support expert instantly.
- Call Us: Speak to a certified Aruba technician for real-time solutions.
- Email Support: Get detailed, personalized assistance straight to your inbox.
Frequently Ask Question
Does the U7 Pro Max come with a PoE injector? ＋
No. Ubiquiti does not include a power injector in the box. You must purchase a standalone PoE+ injector or use a PoE+ capable switch.
Can I use standard PoE (802.3af) for the U7 Pro Max? ＋
No. The unit has a maximum power consumption of 22W–25W, while standard PoE only provides up to 15.4W. You must use a PoE+ (802.3at) power source to prevent the access point from constantly rebooting under load.
What is the difference between UniFi U7 Pro vs U7 Pro Max? ＋
While both share the exact same physical size (⌀206 x 46 mm) and weight (680 g), the Pro Max model features a stronger 5 GHz radio ($4\times4$ MIMO vs $2\times2$ MIMO on the standard Pro) and includes a dedicated spectral analysis radio for real-time interference scanning.
Do I need a 2.5 GbE switch to run the U7 Pro Max? ＋
Not strictly required, but highly recommended. The unit will backward-operate on a standard 1 GbE port, but you will bottleneck the massive multi-gigabit throughput capabilities of the Wi-Fi 7 radios.
Does the U7 Pro Max support wireless meshing? ＋
Yes. It fully supports wireless meshing to connect to other UniFi access points without a direct data cable, though it still requires a PoE+ source for power.
